Produk Detail

Stack Sampler :

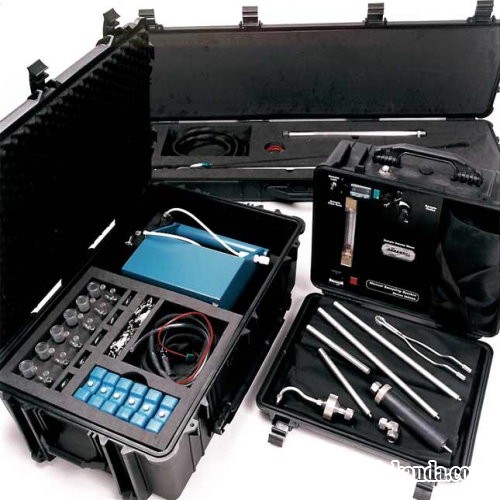

Complete Portable Stack Sampling System, 220/240V , but includes stack velocity data logging measurement accessory - Westech Profile.
1 off Carrying Case and sampling system mounted within.
1 off Probe, SS, 5/8" OD constructed from four sections, including drying tube (max. temp. 200Deg.C).
1 off Filter Holder Assembly, SS, 47mm
1 off Sample Nozzle, SS, 4mm
1 off Sample Nozzle, SS, 5mm
1 off Sample Nozzle, SS, 6mm
1 off Pitot Tip and six 1/4" OD SS extention tubes.
1 off Interconnecting Tube, PVC, 10m
1 off Filter Papers, glass fibre, 47mm, box of 100

Gas Train :
Mini Gas Train Saampling Assembly, includes:
(1) M6-SC Method 6/26 Type Sample Caddy w/ Probe Support
(1) PRA-P3-3/8-V 3' Heated Miniature Probe Assembly, 3/8" Pyrex Liner, 220V
(3) PRL-P3-3/8 3' Pyrex Liner, 3/8", with Cup, 5/8"
(1) PFA-620-6 3/8" PFA Teflon Union
(1) M6-PPL Handheld Probe Purge Bulb
(1) M6-CB Insulated SS Glassware Tray
(1) GSM-6B Midget Method 6 Glassware Set, Ball Joint w/ O-Ring
(1) UA-12 SS 12/5 Umbilical Adapter, TC, Jumpline
(1) UC-25U 25' Umbilical Cable w/ Connector Box
