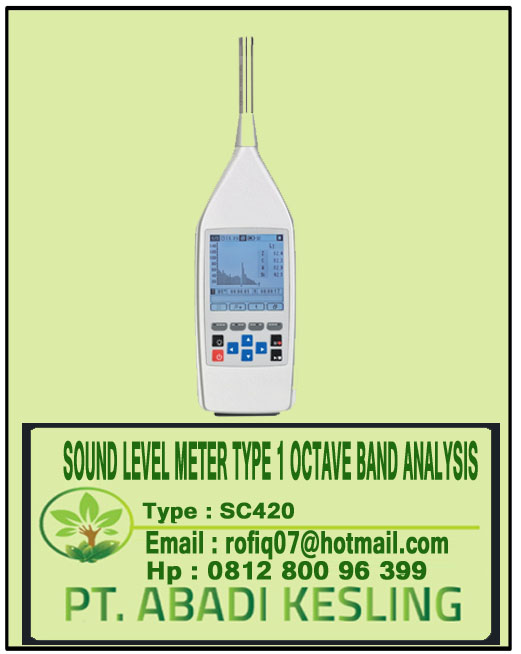

SOUND LEVEL METER TYPE 1 OCTAVE BAND ANALYSIS |
|
|
|
|
|
|
|
|
|
Model |
: |
SC420 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Product |
: |
Spain |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Fungsi |
: |
Untuk monitoring kebisingan di area, Tambang |
|
|
|
|
|
|
|
|
|
|
|
: |
Pemukiman penduduk Bandara, Pelabuhan Terminal, area kerja dll |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Specification : |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- |
Type |
|
|
|
|
|
|
: |
Class 1 |
|
|
|
|
|
|
|
|
|
|
|
- |
CERTIFICATIONS AND STANDARDS |
: |
IEC60651:1:1979, ANSI S1.4-1983, ANSI S1.43-1997 |
|
|
|
|
|
|
|
|
|
|
|
|
IEC 61672 1:02 class 1. EN 61672 1:03 class 1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
IEC 61260:95/A1:01 class 1, EN 61260:95/A1:01 class 1 |
|
|
|
|
|
|
|
|
|
|
|
ANSI S1.4:83/A:85 type 1, ANSI S1.43:97 type 1, ANSI |
|
|
|
|
|
|
|
|
|
|
|
S1.11:04 class 1 OIML R 58:98, OIML R 88:98 |
|
|
|
|
|
|
|
|
|
|
|
|
|
DIN 45657:2005 in reference to the Taktmaximalpegel function |
|
|
|
|
|
|
|
|
|
|
Marking. Complies with 73/23/EEC and EMC 89/336/EEC low |
|
|
|
|
|
|
|
|
|
|
tension regulations, the latter amended by 93/68/EEC |
|
|
|
|
|
|
|
|
|
|
|
Pattern approval certificate for Spain. |
|
|
|
|
|
- |
MEMORY CARD SLOT |
|
|
: |
microSD |
|
|
|
|
|
|
|
|
|
|
|
- |
MAXIMUM CAPACITY |
|
|
: |
32 GB |
|
|
|
|
|
|
|
|
|
|
|
- |
USB COMMUNICATION |
|
|
: |
Digital meets USB rev. 2.0, USB Micro B |
|
|
|
|
- |
ConNECTION CABLE |
|
|
: |
CN400 0.5 m long |
|
|
|
|
|
|
|
|
|
- |
Wireless communication |
|
|
: |
Class 1 Bluetooth, 2402 to 2480
GHz, 50 m |
|
|
|
- |
BATTERIES |
|
|
|
|
|
: |
2 alkaline 1.5 V, AA (LR6) size, 8:45 hours |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Complete unit |
: |
Storage case |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
: |
Calibrator |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
: |
Cable connection to PC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
: |
Lab Software |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
: |
Windscreen |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
