Detail Produk

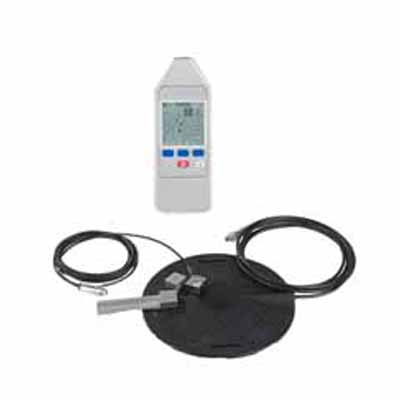

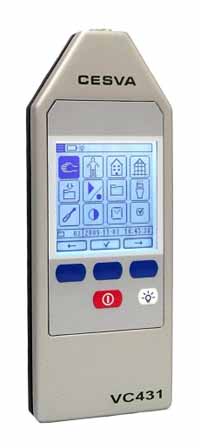

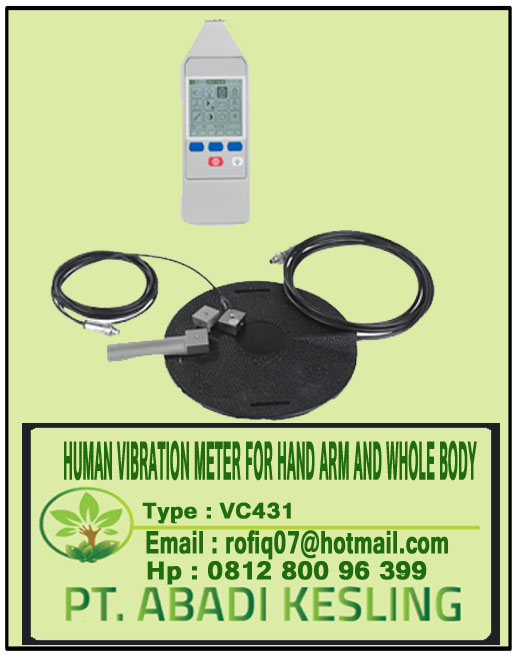

HUMAN VIBRATION METER FOR HAND ARM AND WHOLE BODY - VC431

HUMAN VIBRATION METER FOR HAND ARM AND WHOLE BODY adalah Alat untuk Mengukur Paparan Getaran Mesin terhadap tubuh

HUMAN VIBRATION METER FOR HAND ARM AND WHOLE BODY
Model		:	VC431
Product		:	Spain
Fungsi		:	Mengukur Paparan Getaran Mesin terhadap tubuh

Specification :
-	Certificates and regulations
-	Complies with the following regulations:
	-	ISO 8041:2005 and ISO 8041:2005/Cor1:2007
	-	UNE EN ISO 8041:2006 /AC:2009
	-	Mark. Complied with the directive on low voltage 73/23/EEC and direc-
		tive CEM 89/336/EEC modified by 93/68/EEC
		The complies with directives 2002/96/EC and 2003/108/EC on WEEE
		(Waste Electrical and Electronic Equipment
-	Range of linearity
-	Hand Arm Application
	-	At reference frequency of (80 Hz): acceleration in m/s²
	-				Band limiting		Wh
	-	Upper limit			3800		0.038
	-	Lower limit			767.6		0.038
-	Whole Body Application
	-	At reference frequency of (80 Hz): acceleration in m/s²
	-				Band limiting		Wh	Wk
	-	Upper limit			380		47.918	293.28
	-	Lower limit			0.0038		0.0038	0.0038
-	Whole Body in Buildings Application
	-	At reference frequency of (16 kHz): acceleration in m/s²
	-				Band limiting		Wm
	-	Upper limit			76		25.55
	-	Lower limit			0.00076		0.0008
-	Structure Application
	-	At reference frequency of (16 kHz): velocity in m/s²
	-				Band limiting
	-	Upper limit			1.0748
	-	Lower limit			0.000010748
	-	Maximum error in frequency measurement: 2%
-	Total noise inherent in environmental conditions
-	Hand Arm Application, with
				Wh
	-	Total noise		0.00365
-	Whole Body Application
	-			Wd		Wk
	-	Total noise		0.00191		0.00181
-	Whole Body in Buildings Application, with
	-			Wm
	-	Total noise		0.00012
-	Frequency weighting
	-	Hand Arm (HA): Wh
	-	Whole Body (WB): Wd, Wk
	-	Whole Body in buildings (WBB): Wm

Acessories :
-	Kabel data to computer
-	Software
-	Carying case
-	Sensor Whole Body & Hand arm
-	Sensor Hand Arm
-	Kartu garansi selama 1 tahun
